Screw conveyor system is widely used together with the vertical cuttings dryer system. The auger screw conveyer system can be used to feed cuttings to vertical cuttings dryer, and collection sands discharged from vertical cuttings dryer and then convey to cutting containers, trucks or other sand holding device.
GN Solids Control makes different sizes of screw conveyors to suits for different applications:
The auger diameter varies from 10 inch to 16 inch. There are 10 inch, 12 inch, 14 inch and 16 inch as standard size available from GN Solids Control.
Each size auger conveyor is with screw elements of length 12 ft for each section. The different sections of 12 ft. will be interchangeable. Transfer length can be 24 ft, 36 ft and 48 ft.
Screw conveyorsystem can be used together with other devices to suit for different applications.
Feeding type for Vertical cuttings dryer at rig site:
As the Vertical cuttings dryer is capable to treat the drilling cuttings discharged fromsolids control shale shaker, decander, desander or mud cleaner. It cannot be used to treat the soil discharged from decanter centrifuge. It is too fine to separate by theVG dryer screen basket.
In this case, at least 2 sets 36ft screw conveyer will be used in the rig side VG drying system:
Screw conveyor #1: It is in level to collect drill cuttings from solids control system
Screw conveyor #2: It should be inclined to collect cuttings transferred from #1 screw conveyor and convey to the VG dryer feeder hopper.
Screw conveyor to transfer drilling waste from waste pits or containers:
There should be a V-hopper on top of the screw conveyor to collection and buffer the drill cutting. And the screw conveyor is inclined to convey cuttings from the V-hopper to VG dryer.
However, the screw conveyor system is only suitable for the drilling cuttings with less liquid phase content. If the liquid content is high, screw conveyor cannot do. And it will cause leakage. Vacuum transfer pump will be used in case of the fluid content is high. It is a powerful 100% air driven pump suiting for a very wide range of applications.
- Details
-
Published: 22 February 2018

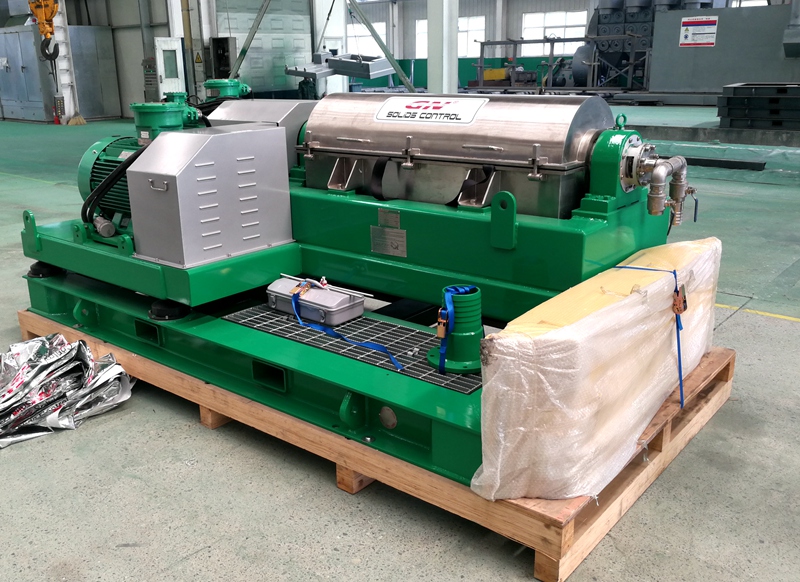

GNLW553C-VFD is a large bowl decanter centrifuge designed and made by the leading solids control manufacturer – GN Solids Control. The GNLW553C-VFD is a decanter centrifuge with 22 inch bowl size (＞21†diameter). The 22 inch large bowl decanter centrifuge GNLW553C-VFD is equipped with Variable Frequency Drive system for a variable bowl speed can conveyor speed to suit for different applications.
GN Solids Control can offer complete centrifuge separation system with the 22 inch large bowl decanter centrifuge GNLW553C-VFD. The complete centrifuge system will be capable of running in continuous operation and suitable for different separation and application:
1) The 22 inch large bowl decanter centrifuge package GNLW553C-VFD is capable for LGS (low gravity separation) reduction with a high bowl speed.
2) The 22 inch large bowl decanter centrifuge package GNLW553C-VFD can be used for barite recovery in oil drilling mud system with a lower bowl speed.
3) The 22 inch large bowl decanter centrifuge package GNLW553C-VFD can be used to separate all types of Water Based Mud and Non Aqueous Based Mud with various properties dependent per the drilling activities.
4) GN 22 inch large bowl decanter centrifuge can separate drilling mud densities range between 8.34 to 13 ppg, the unit shall also be capable of processing fluid densities up to 21 ppg.
5) GN 22 inch large bowl decanter centrifuge package is capable of processing up to 15 tons/hour, with of volumetric capacity of up to 500 gpm with water
6) GNLW553 large bowl centrifuge is capable for continuous rotation between 0 to 3000 rpm, creating max. G force up tp 2770 G. And the scroll differential speed for convey material is 0 to 45rpm.
Wearing protection of GN 22 inch large bowl decanter centrifuge GNLW553
1) Feed Zone Wear Protection: Tungsten Carbide Wear Liners (360° type)
2) Conveyor Wear Protection: All length Tungsten Carbide hard surface paint
3) Bowl Solids Discharge Protection: Tungsten Carbide Wear Liners, plus Tungsten Carbide scrapers cleaning
4) Bowl Wear Protection: Ribs on inner diameter
- Details
-
Published: 14 February 2018
GN Solids Control are leading manufacturer of complete centrifuge system which are capable of running in continuous operation and suitable for LGS (low gravity solids separation) reduction or barite recovery for drilling mud solids control system.
GN Solids Control makes different sizes decanter centrifuges. GN brand decanter centrifuges are suitable to treat all types of Water Based Mud, oil based mud, and other Non Aqueous Based Mud with various properties dependent on the drilling rig mud systems. The most popular size is the small bowl size 14inch GNLW363, and the big bowl models 18 inch GNLW453, and the 22 inch GNLW553.
GN 14inch decanter centrifuge, big bowl models 18 inch centrifuge and 22 inch centrifuge can be used to process drilling fluid densities range between 8.34 to 13 ppg. The drilling fluid densities can be treated by GN brand centrifuge unit is designed also be capable of processing fluid densities up to 21 ppg.
GN 14 inch decanter centrifuge is with speed range: 0 to 3500 rpm. GN 14inch decanter centrifuge maximum Bowl Speed is 3900rpm. The normal working speed range setup is 0 ~ 3200rpm. If client want more working speed range, you can contact with GN engineering team for customization. It is available up to 3500rpm.
Driving system of GN big bowl and small bowl centrifuge systems:
GN 14inch decanter centrifuge is the most popular model for mud solids control and waste management. It can be equipped with fixed speed control, Variable frequency drive control, and Independent full Hydraulic drive control system.
GN 18inch and 22inch decanter centrifuge is available with Variable Frequency Drive system at this moment.
Safety protection of GN big bowl and small bowl centrifuge systems:
1) All GN decanter Centrifuge systems are equipped with Soil blocking plate and end scraper for antiplugging Mechanism protection
2) All GN decanter Centrifuge systems is capable with over currency protection in the electrical control systems for over load protection.
3) Additional Safety Protection: Interlock for bowl drive and pump drive.
- Details
-
Published: 11 February 2018
How time flies. Next weekend, GN Solids Control will take the new year party at Fucheng International hotel. After the new year party, Chinese Lunar new year holiday is coming. Chinese lunar new year is absolutely the most important event for all Chinese people. In order to thanks for all GN staff’s hard working in the past 2017, GN management offers a 2-week holiday for all staff. GN people can go back hometown to enjoy a long holiday with their familiars.
After the new year holiday, another big event for oil man is coming: CIPPE oil show will be opened in Beijing every March.
If you want to know more about CIPPE, you can visit their Website:http://www.cippe.com.cn/en/
CIPPE is started from March 27 until March 29, 2018, totally 3 days. Show Location: New China International Exhibition Center, Beijing (No.88,Yuxiang Road, Tianzhu, Shunyi District, Beijing).
GN Solids Control is located at E2, it is the main hall. GN booth no. is E2168. This website can help you find GN at the big oil show: http://www.cippe.com.cn/en/ExhibitorsServices/FloorPlan/ E2168
As the leading manufacturer on mud solids control equipment, drilling waste management equipment and replacement shaker screens, GN Solids Control will exhibit its updated design equipment and the new technology on the show. Below are some of the equipment you may see from GN on 2018 Beijing CIPPE:
1) 14 inch decanter centrifuge GNLW363C-VFD. It is the most popular side decanter centrifuge for oil drilling rig mud system and waste management system
2) 22 inch big bowl decanter centrifuge GNLW553C-VFD

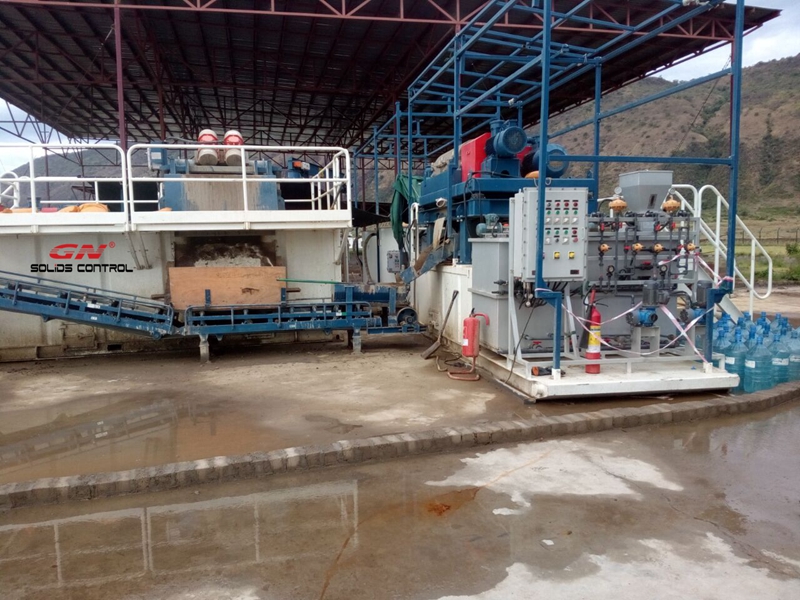

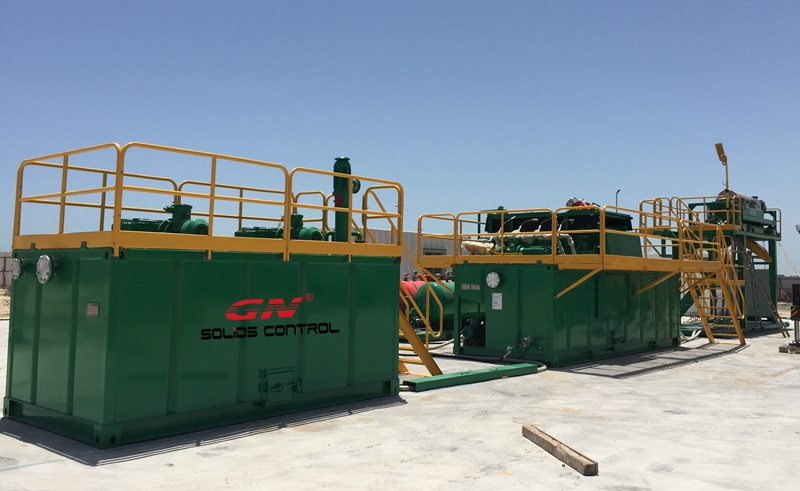

2) Full package oily sludge treatment system. The system is complete with shale shaker and mini side decanter centrifuge

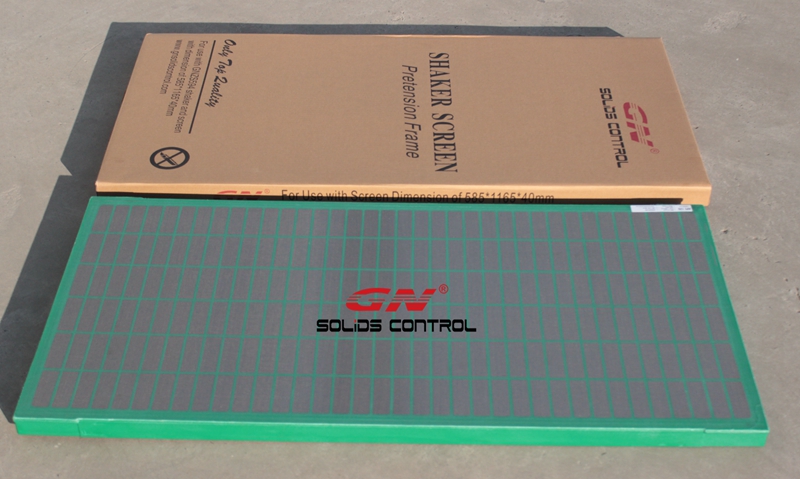

3) GN super star products: composite material shaker screen for different shaker models
4) Sludge transfer Vacuum pump. It is a 100% air driven pump for oil sludge transfer, drilling cuttings transfer, and other long distance of heavy solids content material transfer.
- Details
-
Published: 02 February 2018
A full set of 350 GPM mud recycling system was dispatched from GN Solids Control’s factory 2 weeks ago. The customer buy HDD rig from America Augers, and buy the mud recycling system from GN Solids Control. GN Solids Control customized the same blue color to make the mud recycling with the same color as client’s rigs.
It is a compact design desanding and mud recycling system suits for HDD rigs, CBM drilling, water well drilling and other underground constructions. The 350 GPM mud recycling system is including following equipment:
1) 1 set of Mud Cleaner model GNZY705E-Y6N. It is C/W 5 pcs composite material screen offer for free by GN Solids Control. The mud cleaner is with a double deck shale shaker. The bottom deck can be used as shale shaker, while there is a desilter cone assembly mounted on the top of the upper deck. It can also be used as a mud cleaner.
2) 2 ea of Centrifugal pump 22kw. One pump is used as feeding pump for mud cleaner desilter unit. Another centrifugal pump will be used as mixing pump. It is a mechanical sealing centrifugal pump. The centrifugal pump casing and impeller are made from Wear-resistant material for longer lifetime. The whole pump and all its spare parts are interchangeable with Mission Magnum pump.

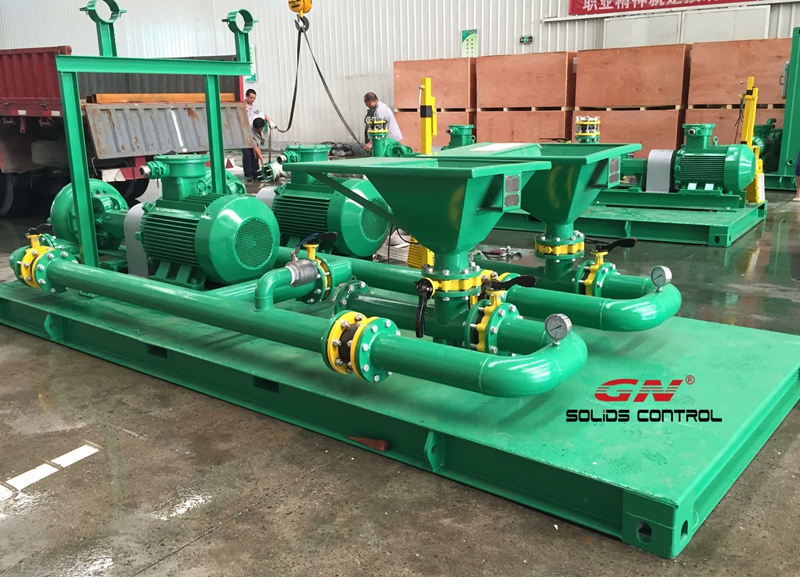

3) 1 ea mixing hopper GNSLS25A. The hopper will be used together with the mixing pump to work as a full mixing unit.
4) 1 ea Mud agitator and 1 ea mud gun will be used to avoid mud settle down at tank bottom.

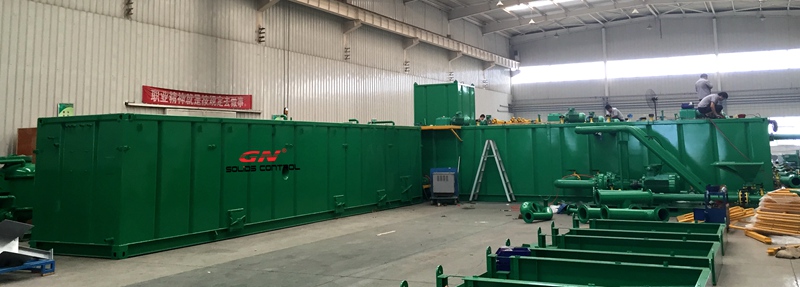

5) A full set of Mud tank is equipped with Ladder, Gavalized slide walkway, handrail, Valves, mud pipe line, clean gate etc. The tank overall dimension is 6000×2100×1600mm. Total useful capacity of the mud tank is 10m3
6) GN offered turnkey solution to customers. A full set of Explosion Proof Electric Control System is equipped to control all the items and equipment within the mud recycling system.
GN Solids Control does offered customized solutions per clients’ request. For any inquires, you can contact GN Solids Control at This email address is being protected from spambots. You need JavaScript enabled to view it. .
- Details
-
Published: 29 January 2018
Chinese Lunar new year holiday is coming in the corner. There is only 3 weeks before the holiday. As there will be no people working during the holiday. And there is no vessel for shipment during a whole month. GN Solids Control workshop is working day and night to ensure a timely delivery before the new year holiday. This week, 3 sets of mud gas separator is ready for shipment and will be ship to a France client soon.
Application and functions of mud gas separator
The mud gas separator is an effectively machine to prevent harmful gas from erosion, and ensure the safety of human and rig site equipment. It is also named poor boy degasser. When the drilling fluid is with air invasion, there will be a large deviation on drilling fluids proportion and viscosity, it cannot meet the drilling requirements. if the air invasion drilling fluids cannot be treated timely and properly, it will cause a surge, or even cause blowout accident. The combination of l mud gas separator and electronic ignition device can ensure the smooth operation of the drilling process.
The mud gas separator is used with choke manifolds to remove free gas from drilling fluids. And mud gas separator can be applied to underbalanced drilling and gas containing hydrogen sulfide. It is used to control liquid level and pressure of air invasion drilling fluids.
Besides mud gas separator, GN Solids Control offers complete solution on mud solids control and drilling waste management.
Mud solids control equipment GN Solids Control does offer:
Shale shaker, desander, desilter, mud cleaner, borate receovery decanter centrifuge, high speed decanter centrifuge, mud tank system, mud mixing system, mud agitator, various pumps etc…
Drill cuttings treatment equipment GN Solids Control does offer:
High speed and big bowl decanter centrifuge, vertical cuttings dryer, High G shale shaker, screw conveyor, dewatering unit, screw pumps, drill cuttings solidification unit, etc….
High quality replacement composite material pretension screens for different shaker models.
GN Solids Control advanced design equipment is with new technology. GN can offer Zero discharge drilling fluids treatment equipment for drilling rigs.
