GN Separation is proud to introduce the GN Classification Vibrating Screen, a state-of-the-art solution for the classification and screening of various materials such as iron ore, coal, non-ferrous metal ore, building materials, and chemicals. Our equipment incorporates advanced design techniques like finite element analysis and anti-fatigue analysis to ensure a robust structure, low energy consumption, and high screening and classification capacity.

Versatile Applications

The GN Classification Vibrating Screen is ideal for a wide range of industries, handling materials that are prone to corrosion and wear. Its applications span from iron ore and coal to non-ferrous metal ores and building materials, making it a versatile choice for various working conditions. The equipment boasts large processing capacity, high efficiency, and stable performance.

Customizable Design

One of the key features of the GN Classification Vibrating Screen is its customizable size. The equipment can be tailored to meet the specific requirements of customers, ensuring optimal performance for each unique application.

Linear Motion Principle

The screen utilizes two vibrating motors installed on the body, which move in a linear line based on the principle of reverse self-synchronization. This linear motion drives the screen panel to vibrate synchronously, transmitting force to the materials on the panel. The materials are then thrown up on the screen surface, layered, and screened according to the specified particle size.

Efficient Screening Process

Materials are continuously fed from the feeding trough to the receiving plate, where they are screened and graded through the screen surface. The screened materials are then discharged into the receiving trough above and below the screen, ready for the next processing stage. The angle between the vibration force direction and the horizontal direction can be adjusted according to the material properties, influencing the running speed of materials on the screen surface and the processing capacity of the equipment.

Technical Characteristics and Advantages

• Non-Welded Wallboard: Made from steel plates with excellent impact toughness and cold bending properties, assembled using imported HUCK rivets for hydraulic tension. This design eliminates welding residual stress and material defects, enhancing fatigue strength.
• Finite Element Analysis: Optimizes structural strength and vibration quality, reducing stress and extending equipment life.
• Polyurea Spraying: Fluid-contact parts and easily worn areas are sprayed with polyurea for superior corrosion, erosion, and wear resistance.
• Post Weld Heat Treatment: Effectively eliminates welding stress in main components.
• Modular Design: Polyurethane screen panels are modular, versatile, and easy to replace, meeting various manufacturing requirements.
• Adjustable Installation Angle: The machine is installed at a positive inclination angle, adjustable by 4 degrees to suit different process materials.
• Enhanced Screening Area: The flat design of the screen surface maximizes the effective screening area, improving material classification.
• Rubber Damping Spring: Features good damping effect, low noise, small resonance field, excellent resilience, stable mechanical performance, long service life, and low cost.

Final Note

The parameters provided are for reference only and can be adjusted according to the customer's specific situation. The final quotation and technical agreement will prevail. The handling capacity of materials with the same size can vary significantly under different working conditions. For more detailed information and to discuss your specific requirements, please consult GN Separation.

GN Separation is committed to delivering innovative and reliable solutions for all your classification and screening needs. Contact us today to learn more about the GN Classification Vibrating Screen and how it can benefit your operations.

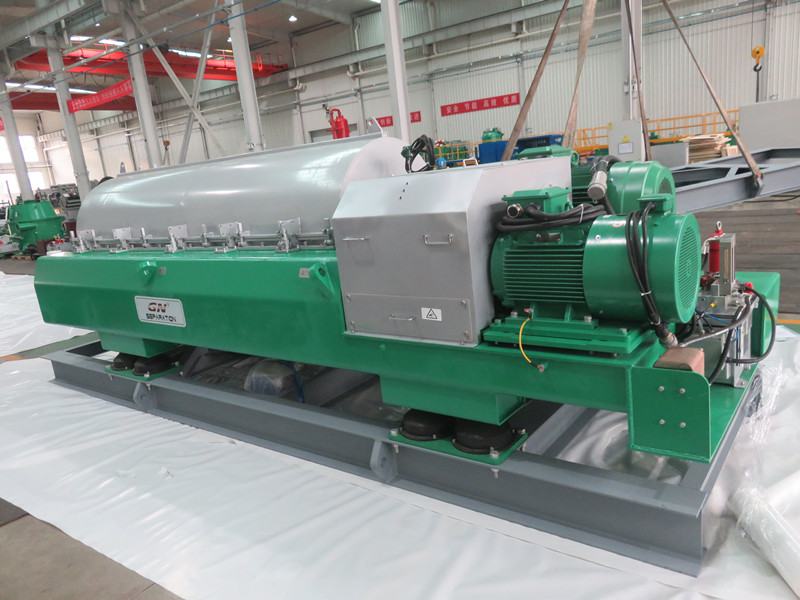

We at GN Separation are thrilled to announce the shipment of our 22-inch large decanter centrifuge to an overseas client. This marks another milestone in our commitment to providing cutting-edge separation technology to clients around the globe.

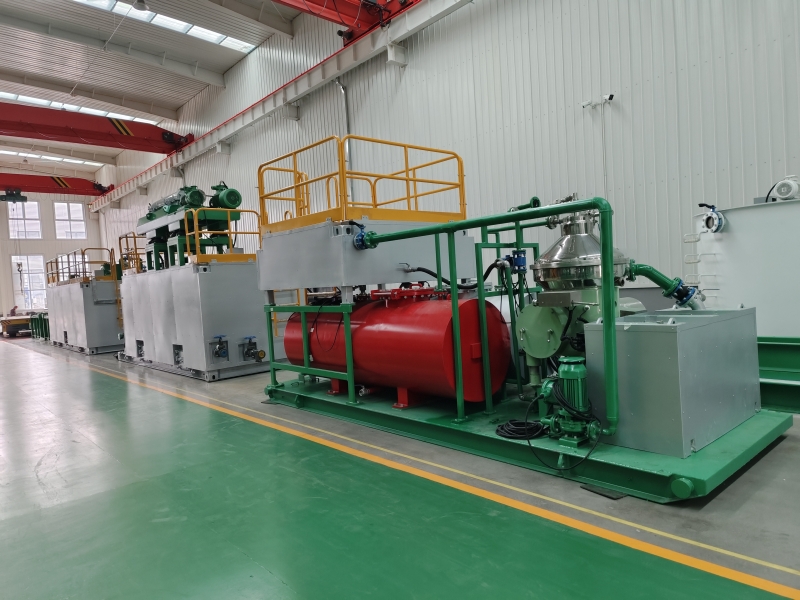

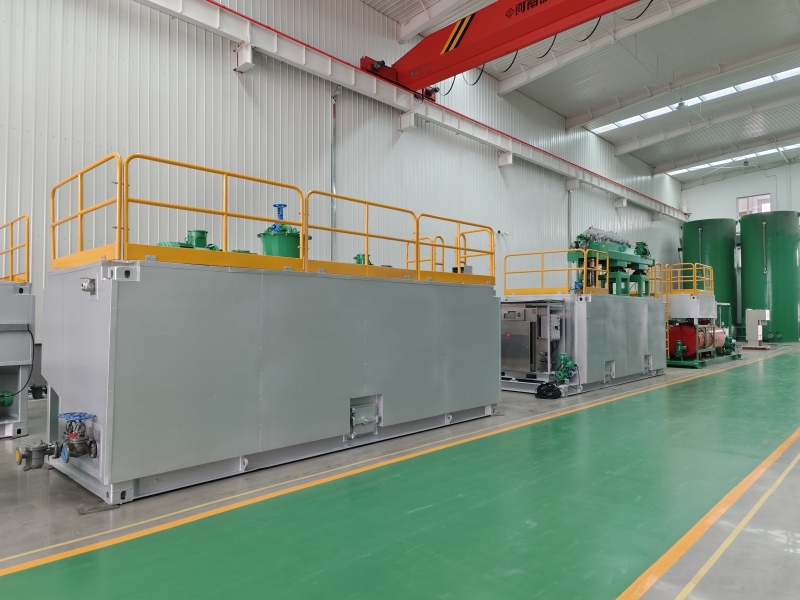

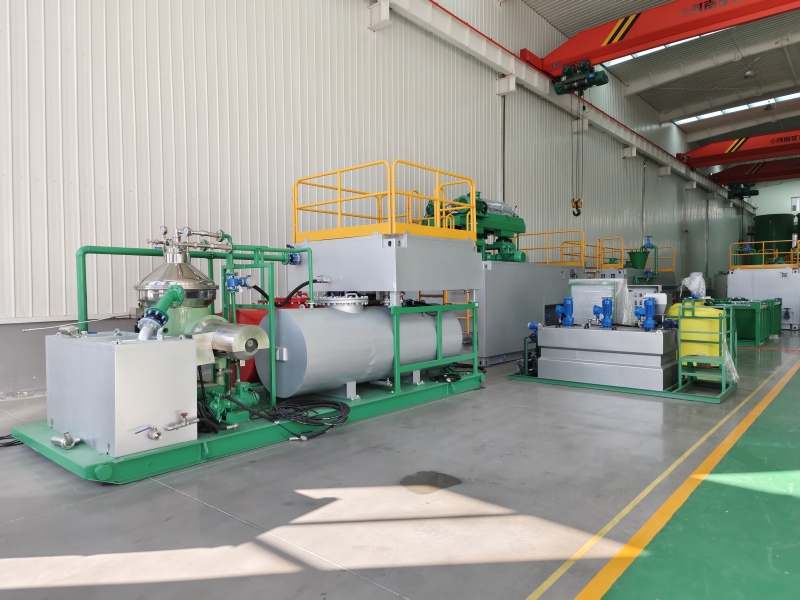

At GN Separation, we pride ourselves on delivering advanced solutions for waste management, and our GN Oily Sludge Treatment System is a prime example of our innovative capabilities. This system is designed to handle the complete treatment process of oily sludge through a hot washing method, providing a comprehensive and efficient approach to managing oily waste.
